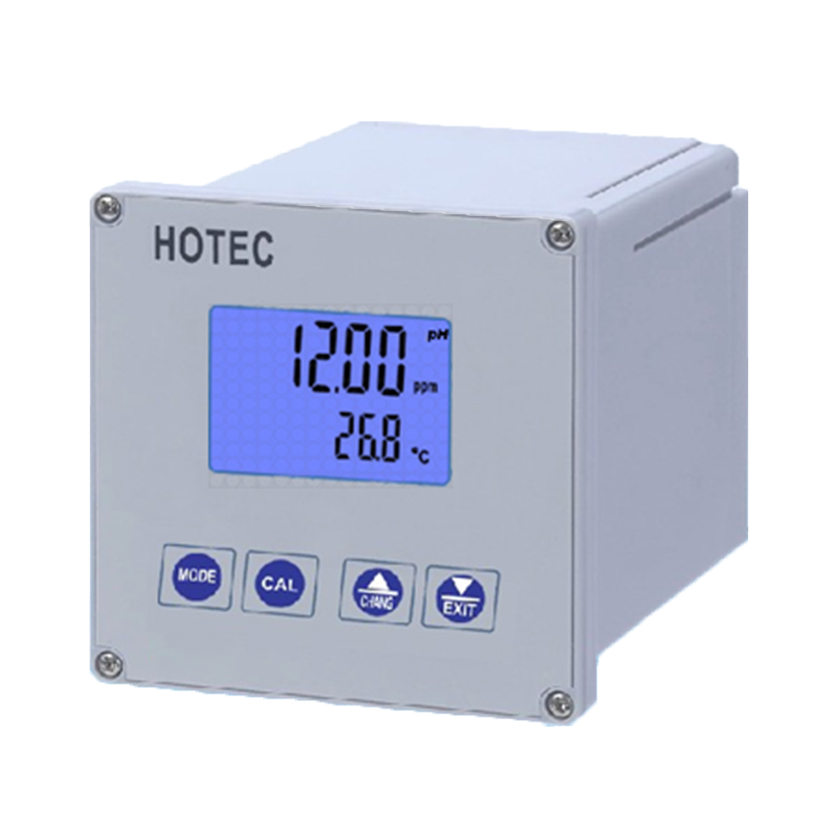

![[UEC-600C]微电脑标准型导电度分析仪 - Microprocessor Conductivity Analyzer](/upfile/201708/2017081141504273.jpg "[UEC-600C]微电脑标准型导电度分析仪 - Microprocessor Conductivity Analyzer")
设计特点：
特殊外壳设计,防水效果佳,防水型外壳,通过IP-65 认证。
液晶显示蓝色背光(LCD),耐温至90℃不变黑,适合户外监测。
校正时斜率及零点错误显示,校正后电极斜率自动显示。
HI/LO迟滞时间可调整设定,可同时显示（us/ms,℃）。
RS-485接口输出,可同时传输（us/cm,℃）,（ms/cm,℃）。
规 格 (Specifications):
型 号 (Model) | UEC-600C | |
测试范围 (Range) | 0~20.00,200.0, 2000us,0~20.00ms/cm【K=1.0】 | 0~100℃ |
精 确 度 (Accuracy) | ±1% full scale | 0.1℃±1 digit |
解 析 度 (Resolution) | 0.01,0.1, 1 us/cm ,0.01 ms/cm【k=1.0】 | 0.3℃ |
温度补偿 (Temp.Comp.) | Manual fixed resistance 5KΩ for 25 ℃ ATC Probe NTC-5K for 25℃ | |
液晶显示 (Display ) | 6 1/2,LCD Display with function indicator Blue back light | |
操作温度 (Oper.Temp.) | 0 to 65℃ | |
模拟输出 (Current output) | DC 4-20mA Isolated Max. Load 600Ω | |
通讯接口 (Communication) | RS-485 Modbus for (us,ms and ℃) | |
控制动作 (Control action) | Hi/Lo [Two relays] | |
设 定 点 (Set point) | H1/H2,L1/L2 (4 point) | |
接点电流 (Current on contact) | 110VAC Max.5A/240VAC Max.3A | |
电 源 (Power) | 110/240VAC,50/60Hz ±15% | |
切割尺寸 (Dimension) | 92*92*125mm H*W*D(Panel mounting) | |
防潮等级 (Enclosure) | IP-65 | |
